ZPNF120 Right Angle Planetary Gear Reducer Single Shaft 120mm

Brand Name : CHE

Model Number : ZPNF90

Certification : RoSH, REACH, ISO9001:2015

Place of Origin : China

MOQ : 1 unit

Price : USD, RMB, EUR

Payment Terms : T/T, D/P, Western Union, MoneyGram

Supply Ability : As pre your request

Delivery Time : 3~7 working days for sample

Packaging Details : Cartoons with plastic bag and foam

Product Series : ZPNF60, ZPNF90, ZPNF120

Size : 60mm, 90mm, 120mm

Rated Torque : 208Nm~310Nm

Output Shaft Method : Single key shaft, Optical shaft, Hollow single key shaft

Precision Class : P1 ( High precision), P0 (Very High Precision)

Gear type : Helical Gear

Motor Power : 1500w~2000w

Full-load Efficiency : L1≥97%； L2≥94%

Working Temperature : -10℃~+90℃

Service Life : 20000 hours

Contact Now

ZPNF120 120mm Single Shaft Right Angle Planetary Speed Gear Reducer


Right Angle Planetary Gear Speed Reducer Features:

● High precision: Secondary precision planetary gear and imported gear scraper precision scraping ring ensure 5-level precision, greatly improving product performance


● Low vibration: The output angular contact bearing is matched with the cage-type planetary carrier to greatly improve the stability of the product, and the end face runout is better


● High rigidity: double support structure increases radial force, full needle roller bearing increases contact area and is more wear-resistant, successfully increasing torque by 40%


● High performance: The design scheme carefully considers and understands the customer's working conditions. The product has excellent working conditions adaptability

Reduction Ratio

Single Stage: 3 / 4 / 5 / 7 / 10

Double Stage: 12 /15 /16/ 20 / 25 / 28 / 30 / 35 / 40 / 50 / 70 / 100
Low Backlash

L1 (Single Stage) Planetary Gearbox: ≤ 3arcmin(P1) / ≤5arcmin(P2)

L2 (Two Stage Planetary) Gearbox: ≤5arcmin(P1) / ≤7arcmin(P2)
Input Speed n1N

ZPNF60: Maximum input speed: 8000rpm Rated input speed: 4000rpm

ZPNF90: Maximum input speed: 6000rpm Rated input speed: 3000rpm

ZPNF120: Maximum input speed: 6000rpm Rated input speed: 6000rpm
Full-load Efficiency

L1 (Single Stage) : ≧ 96%

L2 (Double Stage): ≧ 92%
Gearbox Feature

●Low noise ●Low Volume ●Save Space ●Compact Structure

●High Efficiency ●High Rigidity ●High Load ●High Power
Torsional Rigidity(Nm/armin) ZPNF60: 6Nm/armin ZPNF90: 13Nm/armin ZPNF120: 24Nm/armin
Noise Value(dB)


ZPNF60: ≤58dB ZPNF90: ≤60dB ZPNF120: ≤65dB


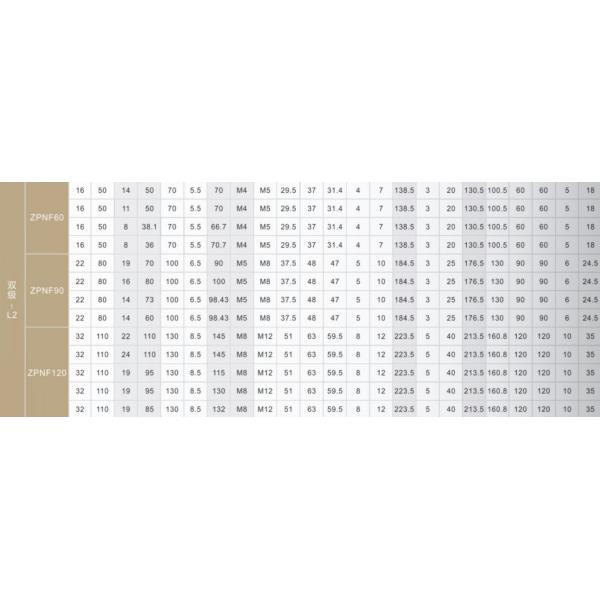

ZPNF120 Right Angle Planetary Gear Reducer Single Shaft 120mm

ZPNF120 Right Angle Planetary Gear Reducer Single Shaft 120mm
ZPNF120 Right Angle Planetary Gear Reducer Single Shaft 120mm

ZPNF120 Right Angle Planetary Gear Reducer Single Shaft 120mm


Speed Reducer Selection Instructions:

Model~if you know the specific model, that would be wonderful.
Torque:
Gear Ratio:
Reducer size or motor power:
Output method:
Connection Method:
Helical or Spur Gear:
Quantity:
What machine you use for:

Pls provide as much as you can so that we can help you more quickly!
Thanks a lot!
