80w 24v High Torque Motor , Brushless DC Electric Gear Motor For Small Robot

Brand Name : CHE

Model Number : F4B80 series

Certification : RoSH, REACH, ISO9001:2015

Place of Origin : China

MOQ : 1 unit

Payment Terms : T/T, D/P, Western Union, MoneyGram

Supply Ability : As pre your request

Delivery Time : 3~7 working days for sample

Packaging Details : Cartoons with plastic bag and foam

Voltage : DC 12v, 24v, 48v

Power : 200w, 120w, 80w, 30w, 15w

Rated Speed : 2000rpm

Rated Torque : 0.143Nm

Brush Life : 5000 hours

Gear Ratio : 3/ 5/ 7.5/ 10/ 12.5/ 15/ 18/ 20/ 25/ 30......../ 150

OEM & ODM Service : Available

Weight : 1600g

Contact Now

High Torque Parallel Shaft Electric Motor 24V/48V DC Brushless Gear Motor 80w for small robot

80w 24v High Torque Motor , Brushless DC Electric Gear Motor For Small Robot

  • A brushless motor or BLDC gear motor is controlled by a motor driver or electronic controller that allows them to provide precise control of motor positioning, while delivering optimal speed and torque.
  • A brushless dc electric motor typically comes equipped with hall-effect sensors or an internal motor driver.
  • The accurate control of an ISL BLDC Motor results in reduced power consumption and less heat generation, creating a more efficient solution.
  • If you have any questions regarding the requirement of controllers to use, please contact us, our engineering team will provide a ull set of solution for you.
  • Available power 200w, 120w, 80w, 30w, 15w, available size 60mm, 70mm, 80mm, 90mm, 104mm

Motor Data:

Type Voltage Power Rated Torque No Load Speed No Load Current Rated Speed Rated Current Hall(Y.N) Life(Hours) Length Internal Drive Weight
V W N.m r/min A r/min A / H mm / g
F4B80--24GN-20S 24 80 0.382 2700 <0.8 2000 4.5 BOTH >5000 70 YES 1600
F4B80--48GN-20S 48 80 0.382 2800 <0.4 2000 2.4 BOTH >5000 70 YES 1600

80 GearBox:

Gear Ratio 3 3.6 5 6 7.5 9 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180 200
Output Speed (r/min) 667 556 400 333 267 222 160 133 111 80 67 56 40 33 27 22 20 17 13 11 10
Allowance Torque (N.m) 0.92 1.1 1.54 1.85 2.32 2.78 3.16 4.64 5.56 6.69 8 8 8 8 8 8 8 8 8 8 8

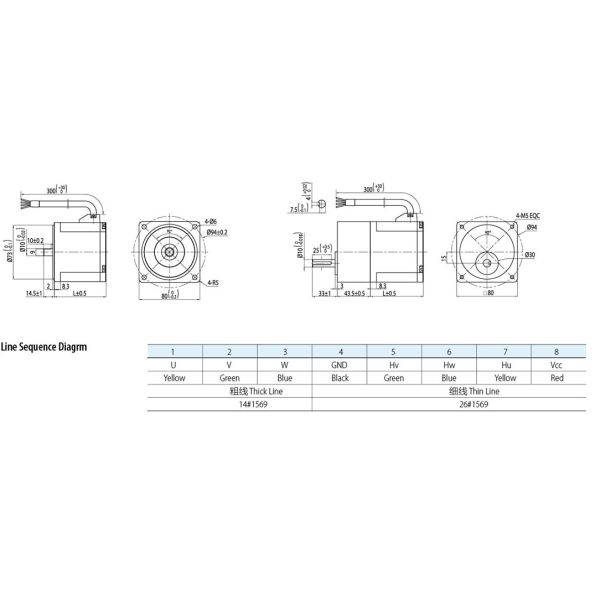

80w 80mm Brushless DC Gear Motor Drawings:

80w 24v High Torque Motor , Brushless DC Electric Gear Motor For Small Robot
