90 Degree Right Angle Brushless DC Gearmotor 60mm For Access Control System

Brand Name : CHE

Model Number : F5B90-24GL

Certification : RoSH, REACH, ISO9001:2015

Place of Origin : China

MOQ : 1 unit

Payment Terms : T/T, D/P, Western Union, MoneyGram

Supply Ability : As pre your request

Delivery Time : 3~7 working days for sample

Packaging Details : Cartoons with plastic bag and foam

Voltage : DC 12v, 24v, 36v, 48v

Power : 25w, 40w, 60w, 90w, 120w, 150w, 200w, 400w

Size : 60mm, 80mm, 90mm, 100mm

Rated Speed : 2500rpm

Gear Ratio : 5/ 10/ 15/ 20/ 30/ 50/ 100/ 150/ 200

OEM & ODM Service : Available

Efficiency : Ie 4

Contact Now

90 Degree Right Angle Brushless DC Gearmotor 60mm For Access Control System

90 Degree Right Angle Brushless DC Gearmotor 60mm For Access Control System

A brushless motor or BLDC gear motor is controlled by a motor driver or electronic controller that allows them to provide precise control of motor positioning, while delivering optimal speed and torque. A brushless dc electric motor typically comes equipped with hall-effect sensors or an internal motor driver. The accurate control of an ISL BLDC Motor results in reduced power consumption and less heat generation, creating a more efficient solution. If you have any questions regarding the requirement of controllers to use, please contact our engineering team.

Motor Parameters:

Motor Model Voltage Power No Load Current No Load Speed Rated Current Rated Speed Rated Torque
Type Of Motor V W A RPM A RPM N.m
F5B90-24GL-25S 12/24/36/48 90 <0.6 3500 5.5 2500 0.343
F5B150-24GL-25S 12/24/36/48 150 <0.8 3500 8.8 2500 0.573
F5B200-24GL-25S 12/24/36/48 200 <1.2 3500 11.5 2500 0.764
002


Gear Ratio Performance:

Gear Ratio Unit 5 10 15 20 30 50 100 150 200
Allowable Torque N.m 3.33 6.66 10 10 15.1 25.1 38 38 50
Recommend Power W 200 200 200 150 150 150 150 90 90
Recommend Speed 2500RPM
Output Torque n.m 2.79 5.58 8.37 8.37 12.5 20.9 38 37.6 50
RatedSpeed rpm 500 250 125 125 83 50 25 16.7 12.5

  • In the table, the speed is calculated form the base of the motor's avaerage speed divided by the deceleration ratio. The actual speed will vary with the load, ranging from 2 to 20%.
  • Table transfer torque is calculated from motor rated torque "deceleration ratio" transmission efficiency

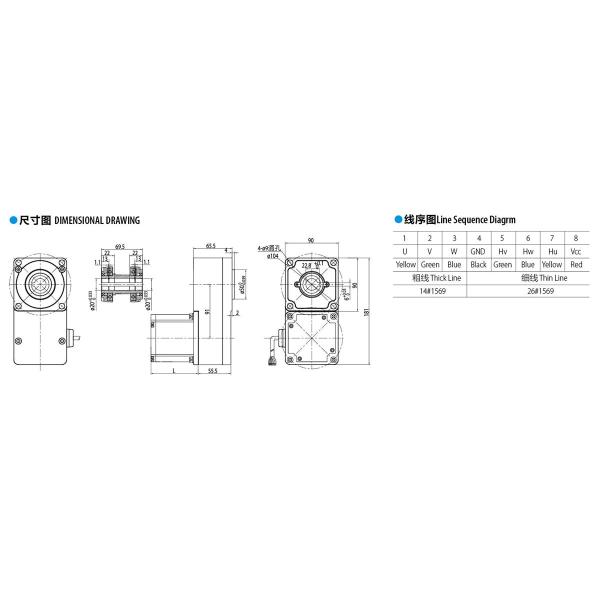

90GL Right Angle Brushless DC Gear Motor Drawings:

90 Degree Right Angle Brushless DC Gearmotor 60mm For Access Control System
